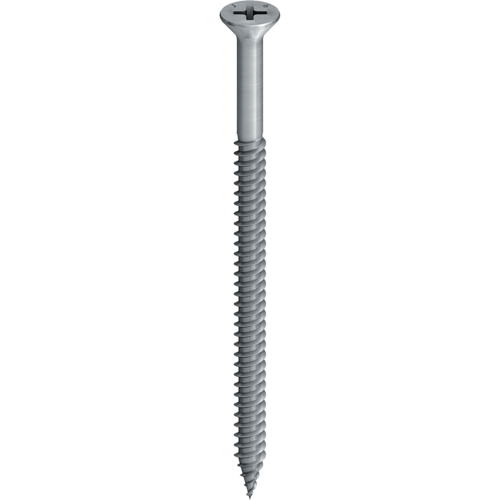

EJOT Dabo® screw VHT-E-4.8

VHT-E-4,8_Pos2

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 0.5 mm ≤ 0.75 mm, timber and wood-based material
    • New buildings and renovations
    • For combination with EJOT® stress plates

    Notice

    For thicker and/or two-ply sheet steel we recommend use of the EJOT Dabo® screw TKE-4.8.

  • Properties

    • A4 stainless steel with hardened steel drill point
    • Thread length 100 mm
    • Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
    • With bugle head

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 0.75 mm
    • Drive: Cross recess PH 2

    Length determination (min. lengths)

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    VHT-E-4.8x100 3497300610 100.0 250

    Specifications

    Length
    100.0
    Orderidentifier
    VHT-E-4.8x100
    Unit
    250
    VHT-E-4.8x160 3497900610 160.0 100

    Specifications

    Length
    160.0
    Orderidentifier
    VHT-E-4.8x160
    Unit
    100
