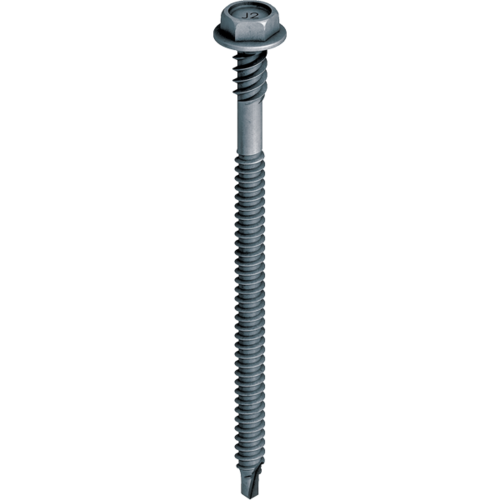

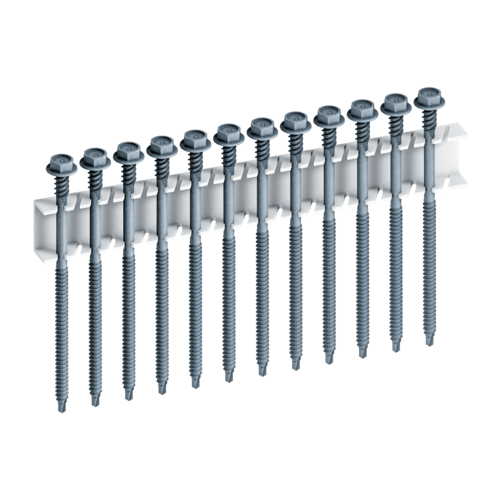

EJOT Dabo® screw AF 8 RT-4.8 belted

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel  ≥ 0.75 mm ≤ 1 mm, timber or wood-based material
    • For combination with EJOT® stress plates
  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • With high thread to prevent screw head protrusion due to foot traffic
  • Technical specifications

    • Diameter: 4.8 mm
    • Drill capacity: 1.5 mm
    • Drive: Hexagon A/F8

    Length determination (min. lengths):

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    AF8RT-4.8x80-belted 3477101629 80.0 750

    Specifications

    Length
    80.0
    Orderidentifier
    AF8RT-4.8x80-belted
    Unit
    750
    AF8RT-4.8x100-belt-fed 3477301629 100.0 750

    Specifications

    Length
    100.0
    Orderidentifier
    AF8RT-4.8x100-belt-fed
    Unit
    750
    AF8RT-4.8x120-belt-fed 3477501629 120.0 750

    Specifications

    Length
    120.0
    Orderidentifier
    AF8RT-4.8x120-belt-fed
    Unit
    750
    AF8RT-4.8x140-belt-fed 3477701629 140.0 750

    Specifications

    Length
    140.0
    Orderidentifier
    AF8RT-4.8x140-belt-fed
    Unit
    750
    AF8RT-4.8x160-belt-fed 3477901629 160.0 750

    Specifications

    Length
    160.0
    Orderidentifier
    AF8RT-4.8x160-belt-fed
    Unit
    750
    AF8RT-4.8x180-belt-fed 3478101629 180.0 750

    Specifications

    Length
    180.0
    Orderidentifier
    AF8RT-4.8x180-belt-fed
    Unit
    750
    AF8RT-4.8x200-belt-fed 3478301629 200.0 750

    Specifications

    Length
    200.0
    Orderidentifier
    AF8RT-4.8x200-belt-fed
    Unit
    750
    AF8RT-4.8x220-belt-fed 3478401629 220.0 750

    Specifications

    Length
    220.0
    Orderidentifier
    AF8RT-4.8x220-belt-fed
    Unit
    750
    AF8RT-4.8x240-belt-fed 3478601629 240.0 750

    Specifications

    Length
    240.0
    Orderidentifier
    AF8RT-4.8x240-belt-fed
    Unit
    750
    AF8RT-4.8x260-belt-fed 3478801629 260.0 750

    Specifications

    Length
    260.0
    Orderidentifier
    AF8RT-4.8x260-belt-fed
    Unit
    750
