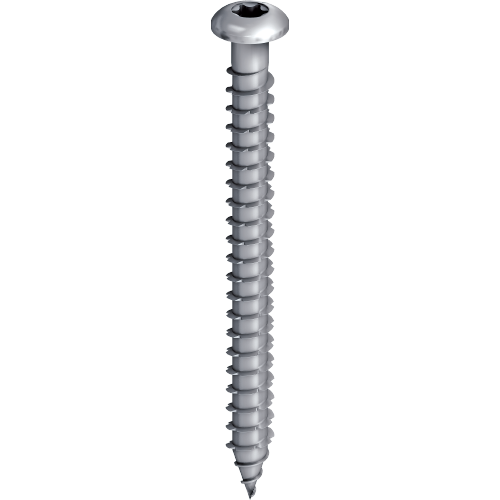

EJOT® frame anchor type RA-Z
Specification
-
Applications
- Direct fastening of plastic and wooden windows in masonry and concrete, without any anchors
- Especially suited for PVC outer Frame without reinforcing steel rods
- Efficient spaced fixing of windows and doors
- Installation according to the RAL quality association guidelines for windows and doors
-
Properties
- Sleek and broad supported head (Ø12 mm)
- Burglary resistant (RC2), tested on steel-free plastic windows
- Tested as fastening element acc. to the ETB guidelines "Building components which protect against falling from heights"
- Reduced forming moulding and exact fit due to perfect thread geometry
- Fast installation, reliable anchoring
- Case-hardened steel
-
Technical Data
- Head diameter: 12 mm
- Drive: T30
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Length mm | Material | Unit | |
|---|---|---|---|---|---|---|
| Frame anchor RA-Z 7.5x120 | 2271120601 | 7.5 | 120.0 | Zinc plated, blue passivated | TORX T30 | 100 |
Specifications
|
||||||
| Frame anchor RA-Z 7.5x150 | 2271150601 | 7.5 | 150.0 | Zinc plated, blue passivated | TORX T30 | 100 |
Specifications
|
||||||
| Frame anchor RA-Z 7.5x180 | 2271180601 | 7.5 | 180.0 | Zinc plated, blue passivated | TORX T30 | 100 |
Specifications
|
||||||
| Frame anchor RA-Z 7.5x210 | 2271210601 | 7.5 | 210.0 | Zinc plated, blue passivated | TORX T30 | 100 |
Specifications
|
||||||
| Frame anchor RA-Z 7.5x250 | 2271250601 | 7.5 | 250.0 | Zinc plated, blue passivated | TORX T30 | 50 |
Specifications
|
||||||
| Frame anchor RA-Z 7.5x300 | 2271300601 | 7.5 | 300.0 | Zinc plated, blue passivated | TORX T30 | 50 |
Specifications
|
