  3. EJOT® VSD 8U-V

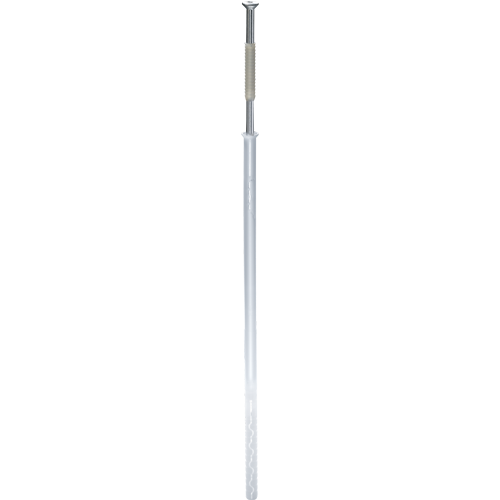

EJOT® VSD 8U-V

EJOT-VSD-8U-V

Specification

  • Applications

    Double expansion renovation anchor with zinc-plated steel screw for double-sheet masonry


    • For renovation of the outer sheet of objects close to industrial exhausts
    • Cost-effective restoring of the structural integrity
    • For concrete, solid and hollow brick (A, B, C)
    • With general building authorities approval

    Note: After renovation of the outer sheet, an additional facade system with thermal insulation (e.g., ETICS) with a thickness of at least 60 mm has to be applied. It also has to be ensured that no ventilation takes place behind the outer sheet.

  • Properties

    • Building authorities approved anchor for renovating double-leaf masonry
    • Universal expansion zone: secure installation into concrete load-bearing shells, solid and perforated brick masonry
    • Double expansion wall anchor: ensures anchorage into substructure and curtain walls
    • Clean and fast installation (no mortar required)
    • 100% installation control
    • Temperature-independent installation
    • Can be installed from 0°C

  • Technical specifications

    Embedment depth hef:≥ 70 mm
    Drill hole depth ts:≥ Id + 10 mm
    Nominal drill diameter: 8 mm
    Minimum thickness of the outer sheet: 115 mm
    Drive Hexalobular drive: TX30

ETICS products are only available from system suppliers

Orderidentifier Article Number Length mm Minimum thickness
of the outer leaf mm 		Distance inner and outer shell mm Embedment depth hef≥ Unit
VSD 8U-V x 225 8765225400 225.0 115.0 20.0 - 40.0 70.0 100

Specifications

Length
225.0
Minimum thickness
of the outer leaf
115.0
Distance inner and outer shell
20.0 - 40.0
Embedment depth hef≥
70.0
Drill hole depth
80.0
Orderidentifier
VSD 8U-V x 225
Unit
100
