EJOT® stress plate HTK-2G-M/TKE collated

HTK-2G-M_foto1

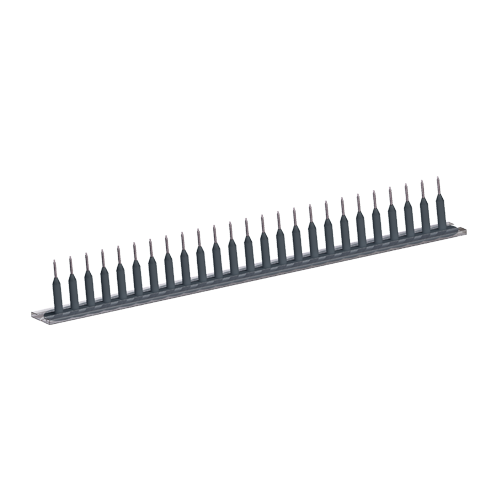

HTK-2G-M_foto2

Specification

  • Applications

    • To fix roofing membrane
    • New buildings and renovations
    • For installation with EJOT® ECOset HTK installation tool
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges

    Notice
    For combination with EJOT Dabo® screws. Drilling  capacity = 4 mm on request!

  • Properties

    • Stress plate: high-grade plastic material
    • Dabo® screw TKR/VHT-R = case-hardened steel, Climadur* coated
    • Dabo® screw TKE/VHT-E = A4 stainless steel
    • collated
    • Telescope design for resistance to imposed loads
    • Combinations for insulation thicknesses up to 605 mm on request

    *Climadur
    High-grade coating to improve the corrosion protection
    (15 Kesternich cycles, DIN 50018, 1997)

  • Technical specifications

    • Drilling capacity: 1.50 mm
    • Collator capacity: 25 pc.

Filter

Selected filters

    Orderidentifier Article Number Recess Depth mm for Dabo ® Screw Insulation thickness mm Screw length mm Unit
    HTK-2G-M/TKE-60-35/50 3703505022 35.0 TKE 60.0 50.0 1000

    Specifications

    Recess Depth
    35.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    60.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-M/TKE-60-35/50
    Unit
    1000
    HTK-2G-M/TKE-80-55/50 3705505022 55.0 TKE 80.0 50.0 1000

    Specifications

    Recess Depth
    55.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    80.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-M/TKE-80-55/50
    Unit
    1000
    HTK-2G-M/TKE-100-55/70 3705507022 55.0 TKE 100.0 70.0 1000

    Specifications

    Recess Depth
    55.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    100.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-M/TKE-100-55/70
    Unit
    1000
    HTK-2G-M/TKE-120-95/50 3709505022 95.0 TKE 120.0 50.0 1000

    Specifications

    Recess Depth
    95.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    120.0
    Screw length
    50.0
    Orderidentifier
    HTK-2G-M/TKE-120-95/50
    Unit
    1000
    HTK-2G-M/TKE-140-95/70 3709507022 95.0 TKE 140.0 70.0 1000

    Specifications

    Recess Depth
    95.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    140.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-M/TKE-140-95/70
    Unit
    1000
    HTK-2G-M/TKE-160-115/70 3711507022 115.0 160.0 70.0 700

    Specifications

    Recess Depth
    115.0
    for Dabo ® Screw
    Insulation thickness
    160.0
    Screw length
    70.0
    Orderidentifier
    HTK-2G-M/TKE-160-115/70
    Unit
    700
    HTK-2G-M/TKE-180-145/60 3714506022 145.0 TKE 180.0 60.0 700

    Specifications

    Recess Depth
    145.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    180.0
    Screw length
    60.0
    Orderidentifier
    HTK-2G-M/TKE-180-145/60
    Unit
    700
    HTK-2G-M/TKE-200-145/80 3714508022 145.0 TKE 200.0 80.0 700

    Specifications

    Recess Depth
    145.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    200.0
    Screw length
    80.0
    Orderidentifier
    HTK-2G-M/TKE-200-145/80
    Unit
    700
    HTK-2G-M/TKE-220-145/100 3714510022 145.0 TKE 220.0 100.0 700

    Specifications

    Recess Depth
    145.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    220.0
    Screw length
    100.0
    Orderidentifier
    HTK-2G-M/TKE-220-145/100
    Unit
    700
    HTK-2G-M/TKE-240-145/120 3714512022 145.0 TKE 240.0 120.0 700

    Specifications

    Recess Depth
    145.0
    for Dabo ® Screw
    TKE
    Insulation thickness
    240.0
    Screw length
    120.0
    Orderidentifier
    HTK-2G-M/TKE-240-145/120
    Unit
    700
