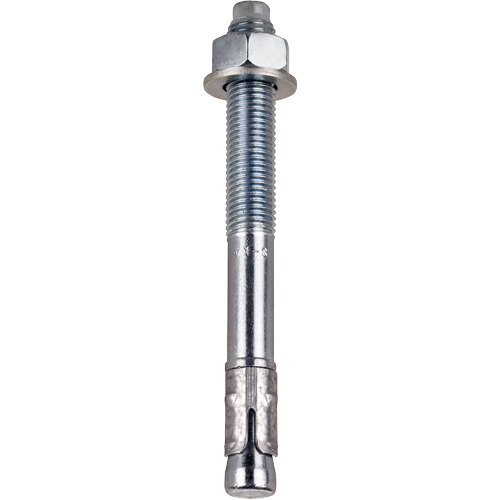

EJOT® BA-V

Specification

Applications
- For embedment in cracked and non-cracked concrete ≥ C20/25
- Dry indoor areas
Notice
Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.
Properties
- Galvanized zinc-plated steel
- Approval for concrete, option I
- Fire resistance classes F30, F60, F90, F120

Downloads

Filter

Selected filters

Orderidentifier	Article Number	ø mm	Length mm	Clamping thickness t_fix≤ mm	Hole depth h₁ ≥ mm	Embedment mm		Unit
BA-V 8/10	9650001112	8.0	72.0	10.0	60.0	45.0	Carbon Steel	50
Specifications ø 8.0 Length 72.0 Clamping thickness t_fix≤ 10.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/10 Unit 50
BA-V 8/30	9650001114	8.0	92.0	30.0	60.0	45.0	Carbon Steel	50
Specifications ø 8.0 Length 92.0 Clamping thickness t_fix≤ 30.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/30 Unit 50
BA-V 8/50	9650001116	8.0	112.0	50.0	60.0	45.0	Carbon Steel	40
Specifications ø 8.0 Length 112.0 Clamping thickness t_fix≤ 50.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/50 Unit 40
BA-V 8/85	9650001118	8.0	147.0	85.0	60.0	45.0	Carbon Steel	40
Specifications ø 8.0 Length 147.0 Clamping thickness t_fix≤ 85.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/85 Unit 40
BA-V 10/10	9650001132	10.0	92.0	10.0	75.0	60.0	Carbon Steel	40
Specifications ø 10.0 Length 92.0 Clamping thickness t_fix≤ 10.0 Hole depth h₁ ≥ 75.0 Embedment 60.0 Material Carbon Steel Orderidentifier BA-V 10/10 Unit 40
BA-V 10/20	9650001135	10.0	102.0	20.0	75.0	60.0	Carbon Steel	25
Specifications ø 10.0 Length 102.0 Clamping thickness t_fix≤ 20.0 Hole depth h₁ ≥ 75.0 Embedment 60.0 Material Carbon Steel Orderidentifier BA-V 10/20 Unit 25
BA-V 10/30	9650001136	10.0	112.0	30.0	75.0	60.0	Carbon Steel	25
Specifications ø 10.0 Length 112.0 Clamping thickness t_fix≤ 30.0 Hole depth h₁ ≥ 75.0 Embedment 60.0 Material Carbon Steel Orderidentifier BA-V 10/30 Unit 25
BA-V 10/50	9650001137	10.0	132.0	50.0	75.0	60.0	Carbon Steel	25
Specifications ø 10.0 Length 132.0 Clamping thickness t_fix≤ 50.0 Hole depth h₁ ≥ 75.0 Embedment 60.0 Material Carbon Steel Orderidentifier BA-V 10/50 Unit 25
BA-V 10/80	9650001139	10.0	162.0	80.0	75.0	60.0	Carbon Steel	25
Specifications ø 10.0 Length 162.0 Clamping thickness t_fix≤ 80.0 Hole depth h₁ ≥ 75.0 Embedment 60.0 Material Carbon Steel Orderidentifier BA-V 10/80 Unit 25
BA-V 12/5	9650001150	12.0	103.0	5.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 103.0 Clamping thickness t_fix≤ 5.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/5 Unit 20
BA-V 12/20	9650001152	12.0	118.0	20.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 118.0 Clamping thickness t_fix≤ 20.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/20 Unit 20
BA-V 12/30	9650001153	12.0	128.0	30.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 128.0 Clamping thickness t_fix≤ 30.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/30 Unit 20
BA-V 12/50	9650001154	12.0	148.0	50.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 148.0 Clamping thickness t_fix≤ 50.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/50 Unit 20
BA-V 12/65	9650001155	12.0	163.0	65.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 163.0 Clamping thickness t_fix≤ 65.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/65 Unit 20
BA-V 12/80	9650001157	12.0	178.0	80.0	90.0	70.0	Carbon Steel	20
Specifications ø 12.0 Length 178.0 Clamping thickness t_fix≤ 80.0 Hole depth h₁ ≥ 90.0 Embedment 70.0 Material Carbon Steel Orderidentifier BA-V 12/80 Unit 20
BA-V 16/20	9650001171	16.0	138.0	20.0	110.0	85.0	Carbon Steel	10
Specifications ø 16.0 Length 138.0 Clamping thickness t_fix≤ 20.0 Hole depth h₁ ≥ 110.0 Embedment 85.0 Material Carbon Steel Orderidentifier BA-V 16/20 Unit 10
BA-V 8/10 DIN 9021	9650001212	8.0	72.0	10.0	60.0	45.0	Carbon Steel	50
Specifications ø 8.0 Length 72.0 Clamping thickness t_fix≤ 10.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/10 DIN 9021 Unit 50
BA-V 8/30 DIN 9021	9650001214	8.0	92.0	30.0	60.0	45.0	Carbon Steel	50
Specifications ø 8.0 Length 92.0 Clamping thickness t_fix≤ 30.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/30 DIN 9021 Unit 50
BA-V 8/50 DIN 9021	9650001216	8.0	112.0	50.0	60.0	45.0	Carbon Steel	40
Specifications ø 8.0 Length 112.0 Clamping thickness t_fix≤ 50.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/50 DIN 9021 Unit 40
BA-V 8/85 DIN 9021	9650001218	8.0	147.0	85.0	60.0	45.0	Carbon Steel	25
Specifications ø 8.0 Length 147.0 Clamping thickness t_fix≤ 85.0 Hole depth h₁ ≥ 60.0 Embedment 45.0 Material Carbon Steel Orderidentifier BA-V 8/85 DIN 9021 Unit 25
