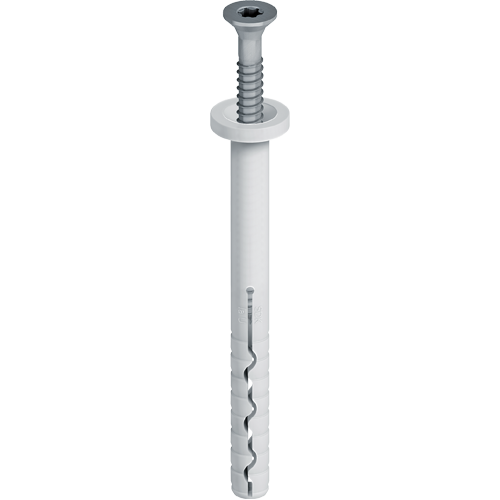

ejotherm® SDK U
Specification
-
Applications
- Fastening of rail-systems
- Screw-in anchor for rails
- For fixing holding and base rails
- Approved for all categories of building materials
-
Properties
- Approved for all categories of building materials
- Shortest embedment depths, minimum drill hole depths
- Highest loads for maximum safety
- Economic anchor usage
- Premounted screw for quick installation
- To compensate facade tolerances use spacers EJOT AS
-
Technical specifications
Anchor diameter: 8 mm
Collar diameter:16 mm
Drill hole depth h1 >: 35 mm (75 mm)
Embedment depth hef >: 25 mm (65 mm)
Screw drive: TORX T30
Use categories acc. to ETA: A, B, C, D
German DIBt approval: Z-21.2-1769
European Technical Approval: ETA-04/0023Values in parentheses: anchoring in aerated concrete (use category E)
ETICS products are only available from system suppliers
Filter
Selected filters
| Orderidentifier | Article Number | Anchor diameter mm | Length mm | Substrate category | Unit | ||
|---|---|---|---|---|---|---|---|
| ejotherm SDK U 045 | 8798045400 | 8.0 | 45.0 | C, D, E, B, A | screw-in-anchor | 20.0 | 100 |
Specifications
|
|||||||
| ejotherm SDK U 065 | 8798065400 | 8.0 | 65.0 | C, D, E, B, A | screw-in-anchor | 40.0 | 100 |
Specifications
|
|||||||
| ejotherm SDK U 085 | 8798085400 | 8.0 | 85.0 | C, D, E, B, A | screw-in-anchor | 60.0 | 100 |
Specifications
|
|||||||
| ejotherm SDK U 105 | 8798105400 | 8.0 | 105.0 | C, D, E, B, A | screw-in-anchor | 80.0 | 100 |
Specifications
|
