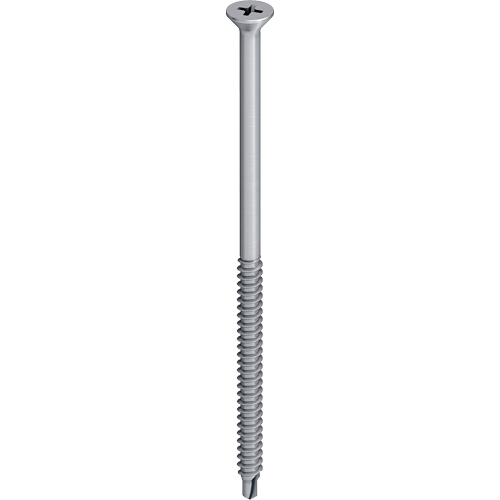

DABO® screw TKE-4.8

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1.5 mm, timber and wood-based material
    • New buildings and renovations
    • For combination with EJOT® stress plates
  • Properties

    • A4 stainless steel with hardened drill point
    • Can be delivered belted for EJOT® ECOset installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOset HTK installation tool.
    • With bugle head
  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 1.5 mm
    • Drive: Cross recess PH 2
    Length determination (min. lengths)
    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    TKE-4.8x50 7384108301 50.0 500

    Specifications

    Length
    50.0
    Orderidentifier
    TKE-4.8x50
    Unit
    500
    TKE-4.8x60 7384109301 60.0 500

    Specifications

    Length
    60.0
    Orderidentifier
    TKE-4.8x60
    Unit
    500
    TKE-4.8x70 7384110301 70.0 500

    Specifications

    Length
    70.0
    Orderidentifier
    TKE-4.8x70
    Unit
    500
    TKE-4.8x80 7384111301 80.0 250

    Specifications

    Length
    80.0
    Orderidentifier
    TKE-4.8x80
    Unit
    250
    TKE-4.8x90 7384112301 90.0 250

    Specifications

    Length
    90.0
    Orderidentifier
    TKE-4.8x90
    Unit
    250
    TKE-4.8x100 7384113301 100.0 250

    Specifications

    Length
    100.0
    Orderidentifier
    TKE-4.8x100
    Unit
    250
    TKE-4.8x140 7384125301 140.0 250

    Specifications

    Length
    140.0
    Orderidentifier
    TKE-4.8x140
    Unit
    250
    TKE-4.8x120 7384132301 120.0 250

    Specifications

    Length
    120.0
    Orderidentifier
    TKE-4.8x120
    Unit
    250
    TKE-4.8x160 7384198301 160.0 100

    Specifications

    Length
    160.0
    Orderidentifier
    TKE-4.8x160
    Unit
    100
    TKE-4.8x180 7384202301 180.0 100

    Specifications

    Length
    180.0
    Orderidentifier
    TKE-4.8x180
    Unit
    100
