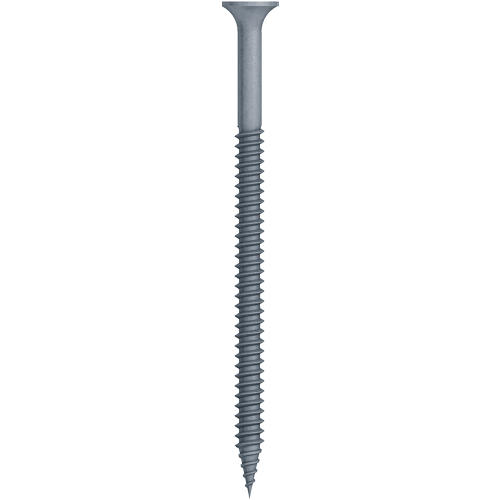

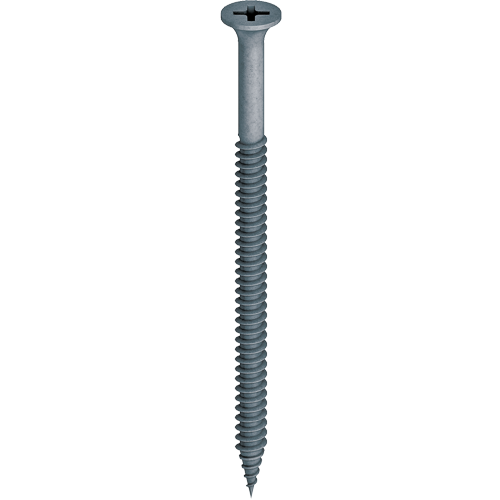

DABO® screw VHT-R-4.8

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 0.5 mm ≤ 0.75 mm, timber and wood-based material
    • For combination with EJOT® stress plates

    Note

    For thicker and/or two-ply sheet steel we recommend use of the EJOT Dabo® screw TKR-4.8.

  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection
      (15 Kesternich cycles, DIN 50018, 1997)
    • Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
    • With bugle head
  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 0.75 mm
    • Drive: Cross recess PH 2

    Length determination (min. lengths)

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    VHT-R-4.8x35 3496700609 35.0 500

    Specifications

    Length
    35.0
    Orderidentifier
    VHT-R-4.8x35
    Unit
    500
    VHT-R-4.8x50 3496800609 50.0 500

    Specifications

    Length
    50.0
    Orderidentifier
    VHT-R-4.8x50
    Unit
    500
    VHT-R-4.8x60 3496900609 60.0 500

    Specifications

    Length
    60.0
    Orderidentifier
    VHT-R-4.8x60
    Unit
    500
    VHT-R-4.8x70 3497000609 70.0 500

    Specifications

    Length
    70.0
    Orderidentifier
    VHT-R-4.8x70
    Unit
    500
    VHT-R-4.8x80 3497100609 80.0 250

    Specifications

    Length
    80.0
    Orderidentifier
    VHT-R-4.8x80
    Unit
    250
    VHT-R-4.8x90 3497200609 90.0 250

    Specifications

    Length
    90.0
    Orderidentifier
    VHT-R-4.8x90
    Unit
    250
    VHT-R-4.8x100 3497300609 100.0 250

    Specifications

    Length
    100.0
    Orderidentifier
    VHT-R-4.8x100
    Unit
    250
    VHT-R-4.8x120 3497500609 120.0 250

    Specifications

    Length
    120.0
    Orderidentifier
    VHT-R-4.8x120
    Unit
    250
    VHT-R-4.8x140 3497700609 140.0 250

    Specifications

    Length
    140.0
    Orderidentifier
    VHT-R-4.8x140
    Unit
    250
    VHT-R-4.8x160 3497900609 160.0 100

    Specifications

    Length
    160.0
    Orderidentifier
    VHT-R-4.8x160
    Unit
    100
