EJOT® self-drilling screw JT3-FR-12-5.5

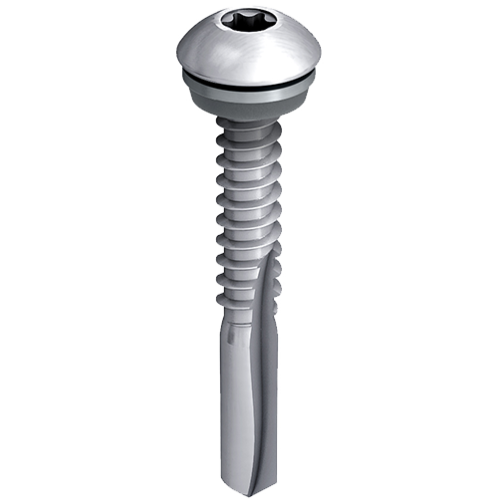

Produktbild-JT3-FR-12-5_5

Specification

  • Applications

    • Fastening profiled steel and aluminium sheets to 4 - 10 mm steel substructure
    • Fastening profiled aluminium sheets to 4 - 12 mm aluminium substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With truss head

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1300 rpm
Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JT3-FR-12-5.5x40-E11 3595669318 5.5 11 40.0 4.0 - 12.0 500

Specifications

ø
5.5
Ø Sealing Washer mm
11
Length
40.0
Clamp thickness
4.0 - 12.0
Fastener material
Stainless Steel
Orderidentifier
JT3-FR-12-5.5x40-E11
Unit
500
