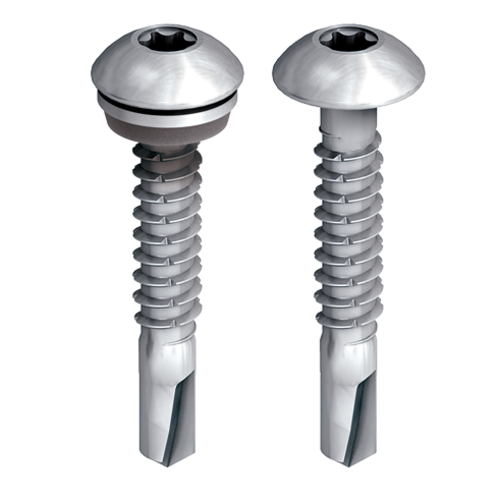

EJOT® self-drilling screw JT3-FR-6-5.5

Specification

  • Applications

    • Fastening corrugated profile steel sheets to 1.5 - 5 mm steel substructure
    • Fastening corrugated profile aluminium sheets to 1.5 - 5 mm steel or 2 - 5 mm aluminium substructure
  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With truss head
  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 5.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT3-FR-6-5.5x25-E11 3592269368 5.5 11 25.0 7.0 - 0.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    25.0
    Clamp thickness
    7.0 - 0.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-6-5.5x25-E11
    Unit
    500
    JT3-FR-6-5.5x25-E11 PU100 6592269368 5.5 11 25.0 0.0 - 7.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-6-5.5x25-E11 PU100
    Unit
    100
    JT3-FR-6-5.5x35-E11 3592569368 5.5 11 35.0 17.0 - 0.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    35.0
    Clamp thickness
    17.0 - 0.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-6-5.5x35-E11
    Unit
    500
    JT3-FR-6-5.5x35-E11 PU100 6592569368 5.5 11 35.0 0.0 - 17.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    11
    Length
    35.0
    Clamp thickness
    0.0 - 17.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-FR-6-5.5x35-E11 PU100
    Unit
    100
